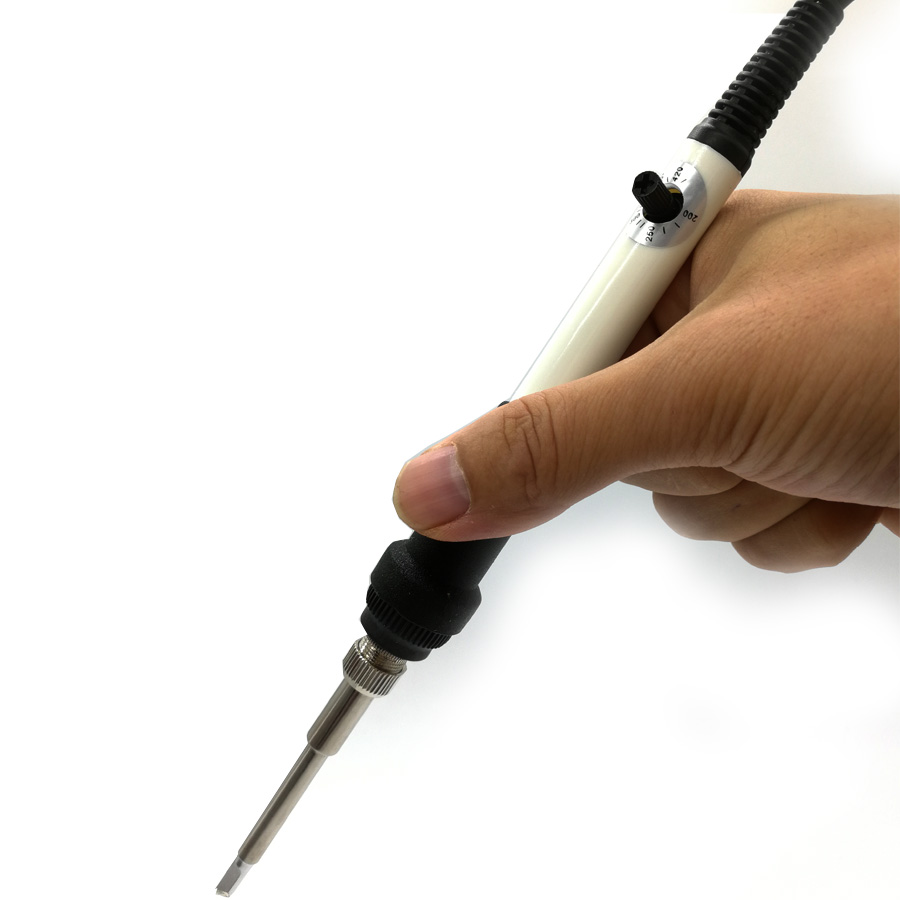

T12 Mini Adjustable Temperature Electric Soldering Iron DC12-24V soldering station Constant temperature Welding Tool 75W

This electric soldering iron is an essential tool for electronics engineers. It's mini and lightweight in design; and the operating handle and tip are easy and convenient for use. Users can adjust the temperature from 200-400°C freely by ro
Product Abstract:
Model Number Mini-T12-solder pen
Output Power 75W
Output Temper 200-450C
Size 215mm
Input Voltage 24v
Heat Times 7s
Apply Handle NONE
Get A Free Quote Now We Will Not Send Spam Mail To You.
  • QUICKO ELECTRONIC




    This electric soldering iron is an essential tool for electronics engineers. It's mini and lightweight in design; and the operating handle and tip are easy and convenient for use. Users can adjust the temperature from 200-400°C freely by rotating the knob.

    Note:
    The power supply is not included, please prepare power supply adapter with DC 12-24V output & 5.5*2.1mm interface by yourself.


    Features:
    Small size, lightweight and convenient to carry.
    Adjustable temperature range from 200-400°C.
    High heating efficiency(Melting tin only takes 7s, when it works on 12V 3A).
    Using DC 12-24V for power supply, with DC 5.5*2.1mm interface.
    Comfortable operating handle, easy to replace the soldering tip.
    Great and essential soldering tool for electronics engineers.

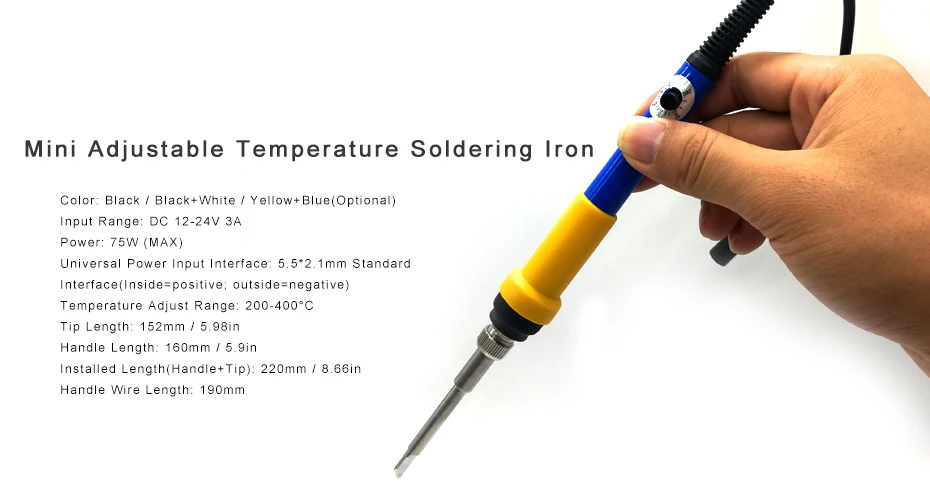

    Specifications:

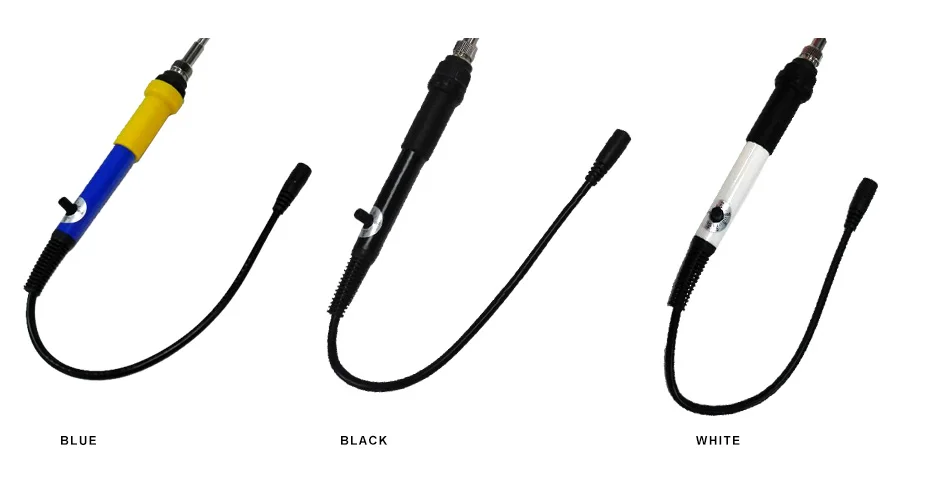

    Color: Black +White +Blue(Optional)
    Input Range: DC 12-24V 3A
    Power: 75W (MAX)
    Universal Power Input Interface: 5.5*2.1mm Standard Interface(Inside=positive; outside=negative)
    Temperature Adjust Range: 200-400°C
    Tip Length: 152mm / 5.98in
    Handle Length: 150mm / 5.9in
    Installed Length(Handle+Tip): 220mm / 8.66in

    Package:
    1 * Mini Adjustable Electric Soldering Iron

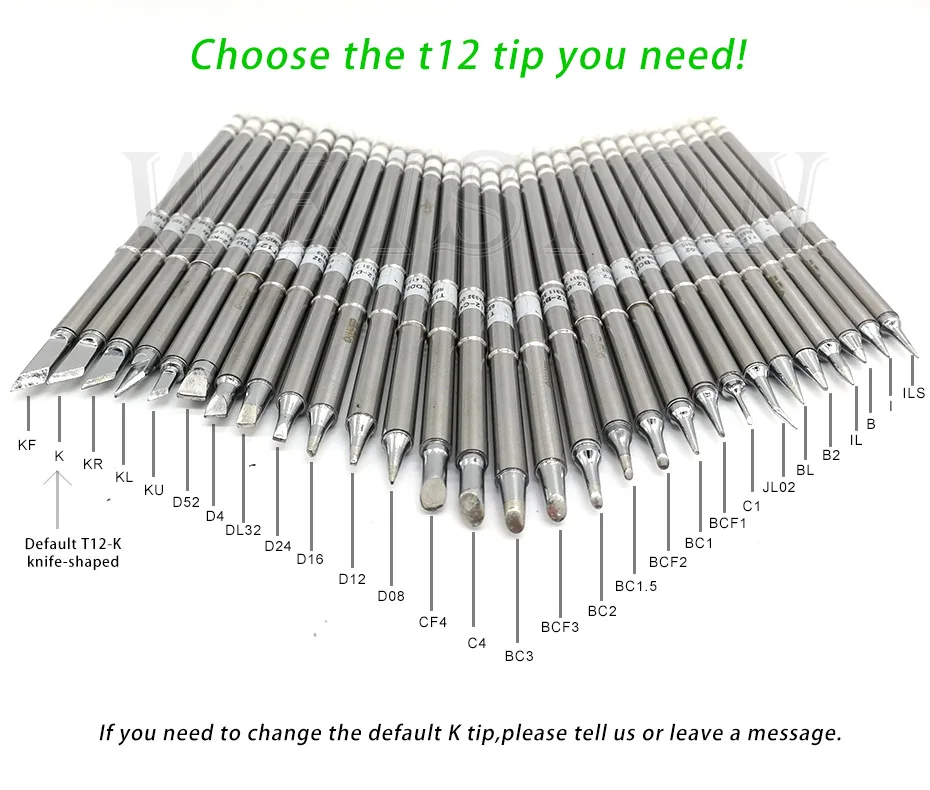

    1 * T12-K Soldering Tip

    1

    23

    Power supply voltage and current matching table
    Voltage Current power
    12V >1.50A 18W
    13V >1.63A 21W
    14V >1.70A 25W
    15V >1.88A 28W
    16V >2.00A 32W
    17V >2.13A 36W
    18V >2.25A 41W
    19V >2.38A 45W
    20V >2.50A 50W
    21V >2.63A 55W
    22V >2.75A 61W
    23V >2.88A 66W
